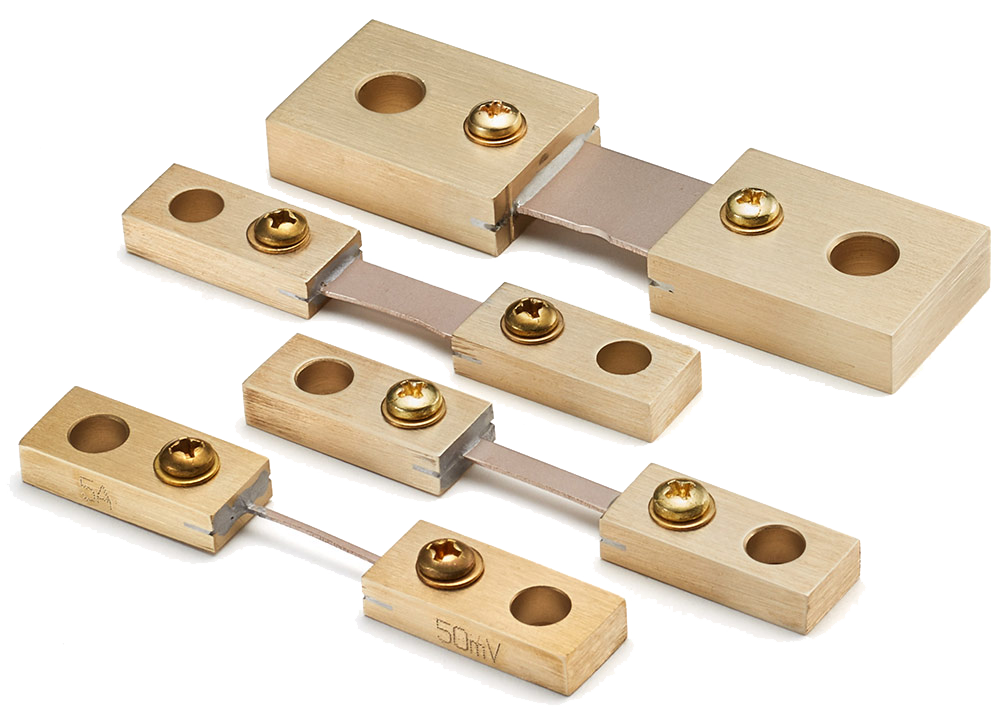

RSW Shunts


Precision Current Resistor/ Busbar Shunts

Characteristics

  • 5 Amp - 200 Amp
  • 50mV output
  • 0.25 to 10 mOhm
  • Center mounted voltage taps
  • Compact size
  • 0.25% tolerance
Data chart

Type Specifications
Rated Output 50mV Standard, Custom
Voltage Tolerance ±0.25% Standard
Operating Temp. +30°C to +70°C
Storage Temp. -55°C to 80°C
Materials Resistance Element: Manganin
Terminal Block RSW: Brass
