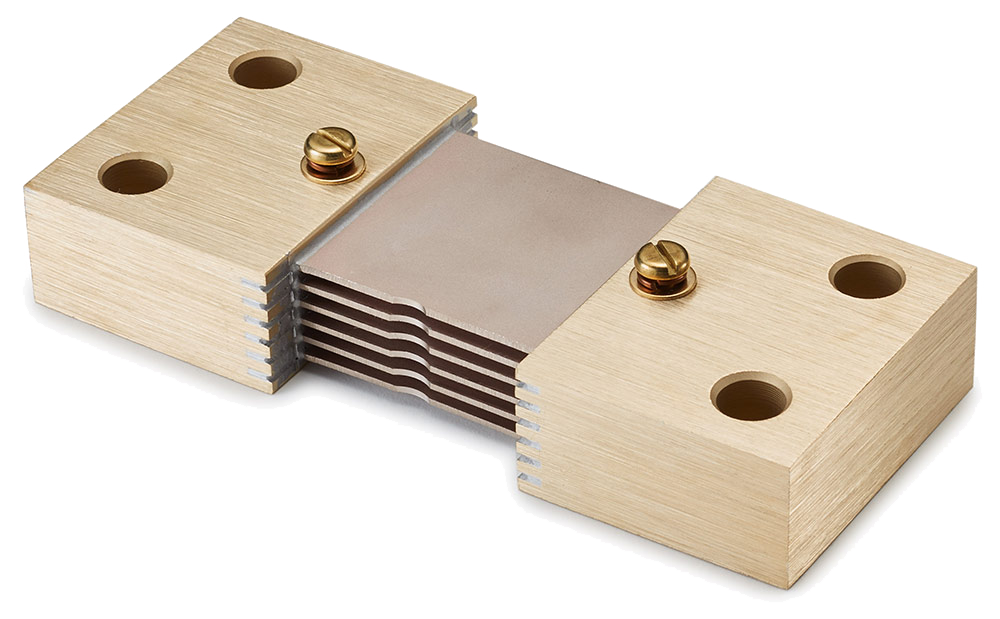

RSI Shunts


DC Ammeter Shunts / Busbar Shunts

Characteristics

  • 300 Amp to 1,200 Amp
  • 0.25% Tolerance
  • 0.042 mOhm to 0.333 mOhm
Data chart

Type Specifications
Rated Output 50mV, 100mV, Custom
Voltage Tolerance ± 0.25% Standard
Operating Temp. 30°C to 70°C
Storage Temp. -55°C to 80°C
Materials

Resistance Element: Manganin

Terminal Block RSI: Brass
